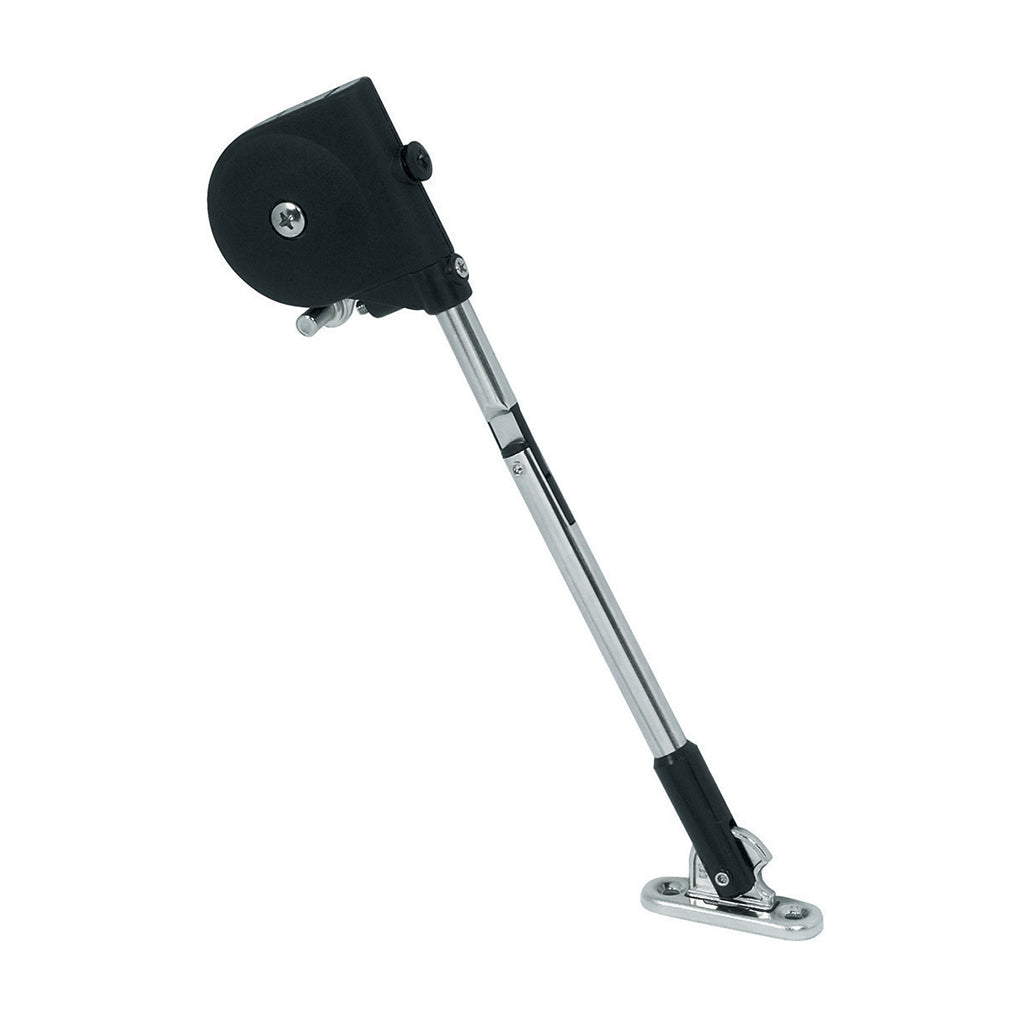

For Timber Flaps with Plastic Housing
$37.59
Cat. No: 365.30.300
| Opening angle: | 80º-100º Adjustable with screw |
| Material: | Steel, plastic housing |
| Finish: | Nickel-plated, black housing |
| Version: | With angular bracket |
| Installation: | For left and right hand use |
| Fixing: | To angular bracket using plug-in, quick fix system |
| Mounting: | Screw fixing |
| Supplied with: | Fixing screws Installation instructions |
| Note: | Braking effect cannot be adjusted Adjusting the braking effect with the screw: - Unscrew to increase braking effect - Tighten screw to decrease braking effect |
| Flap height | kg/piece (Flap weight) | kg/pair (Flap weight) |
| 300 mm | 2.34 - 3.33 | 4.67 - 6.66 |
| 350 mm | 2.00 - 2.85 | 4.00 - 5.71 |
| 400 mm | 1.75 - 2.50 | 3.50 - 5.00 |
| 450 mm | 1.56 - 2.22 | 3.14 - 4.44 |
| 500 mm | 1.40 - 2.00 | 2.80 - 4.00 |
Dimensions:
| Hinge Type | A | B | C |
| Flap Hinges | 91 + s | 126 + s | 209 + s |
| Piano hinges or hinges with exposed axle | 100 | 135 | 218 |
