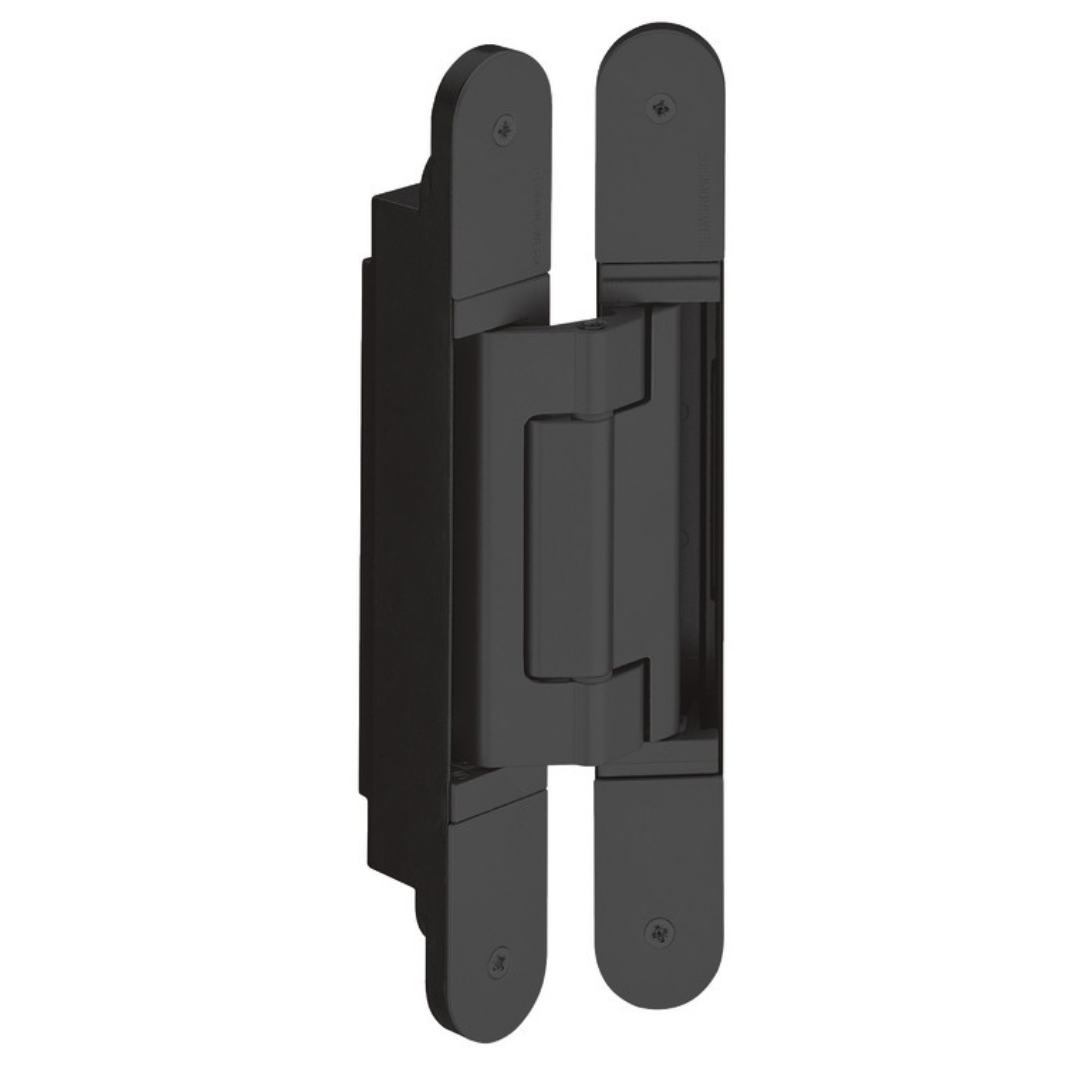

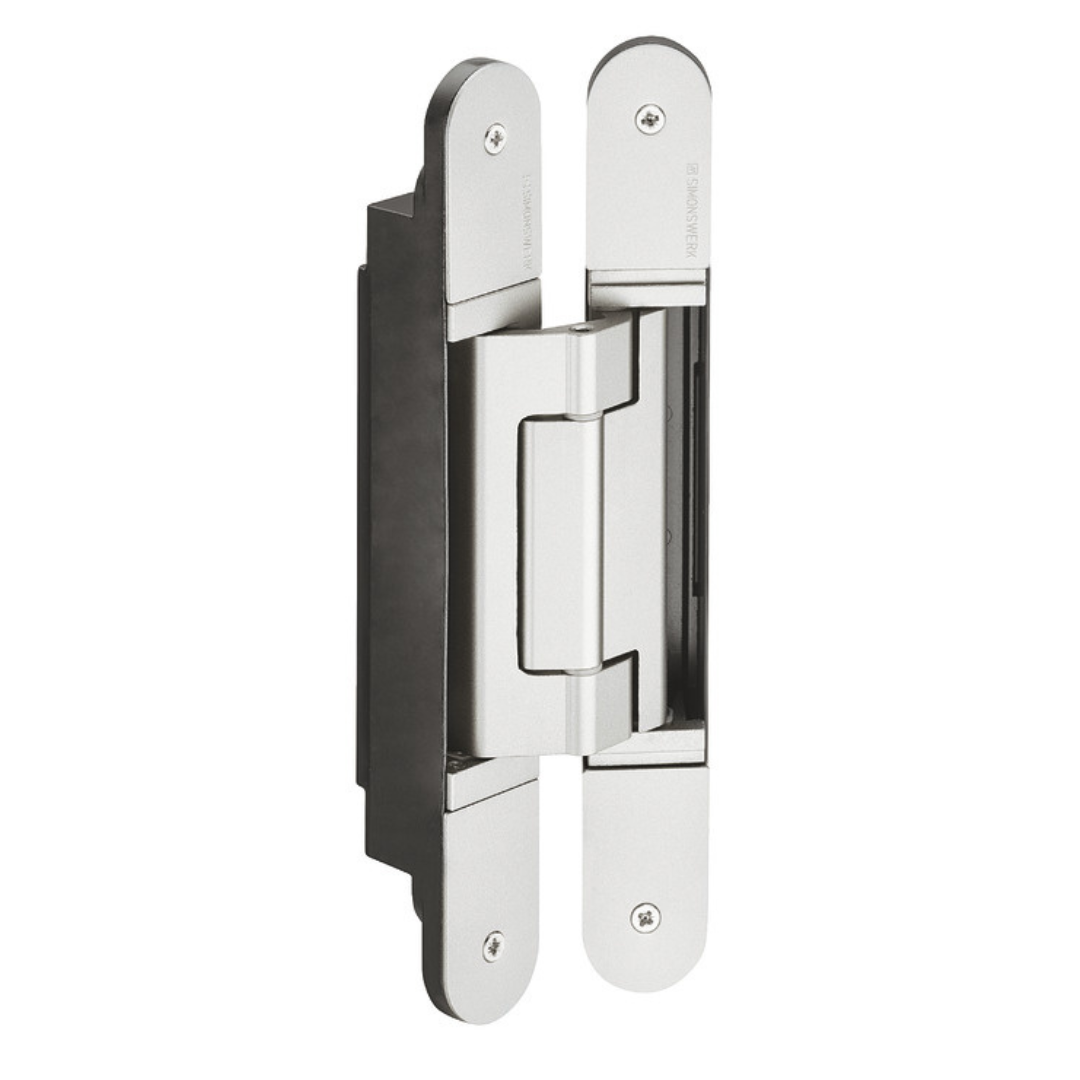

Door Hinge Concealed TE640 3D, 3D Adjustable
$535.48
Cat. No: 924.17.424
| Area of Application: | For wooden, steel or aluminium frames for flush doors flush doors up to 200kg |
| Version: | With doubling elements |
| Material: | Steel, Aluminium, Zinc alloy |
| Finish: |

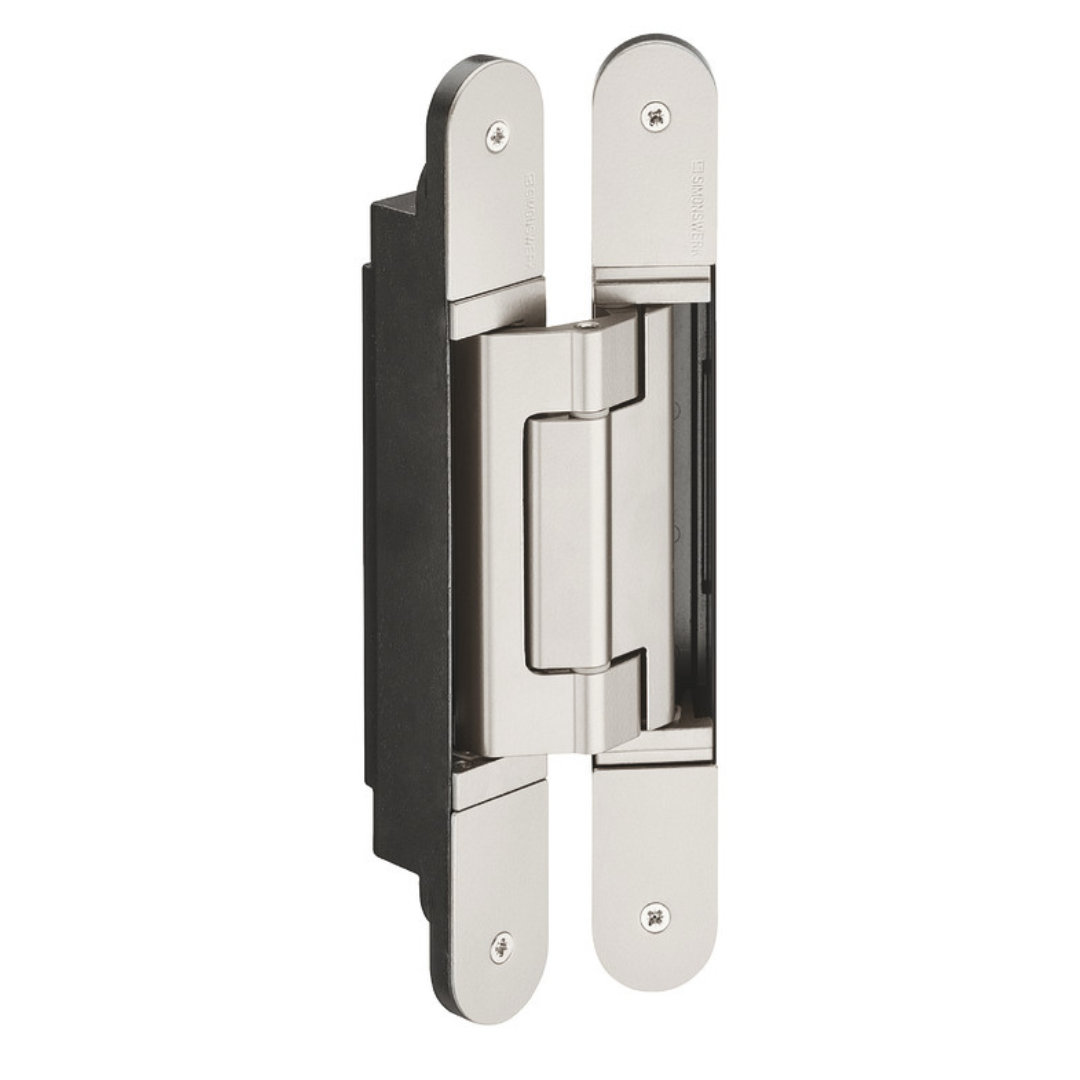

Satin Nickel Look |

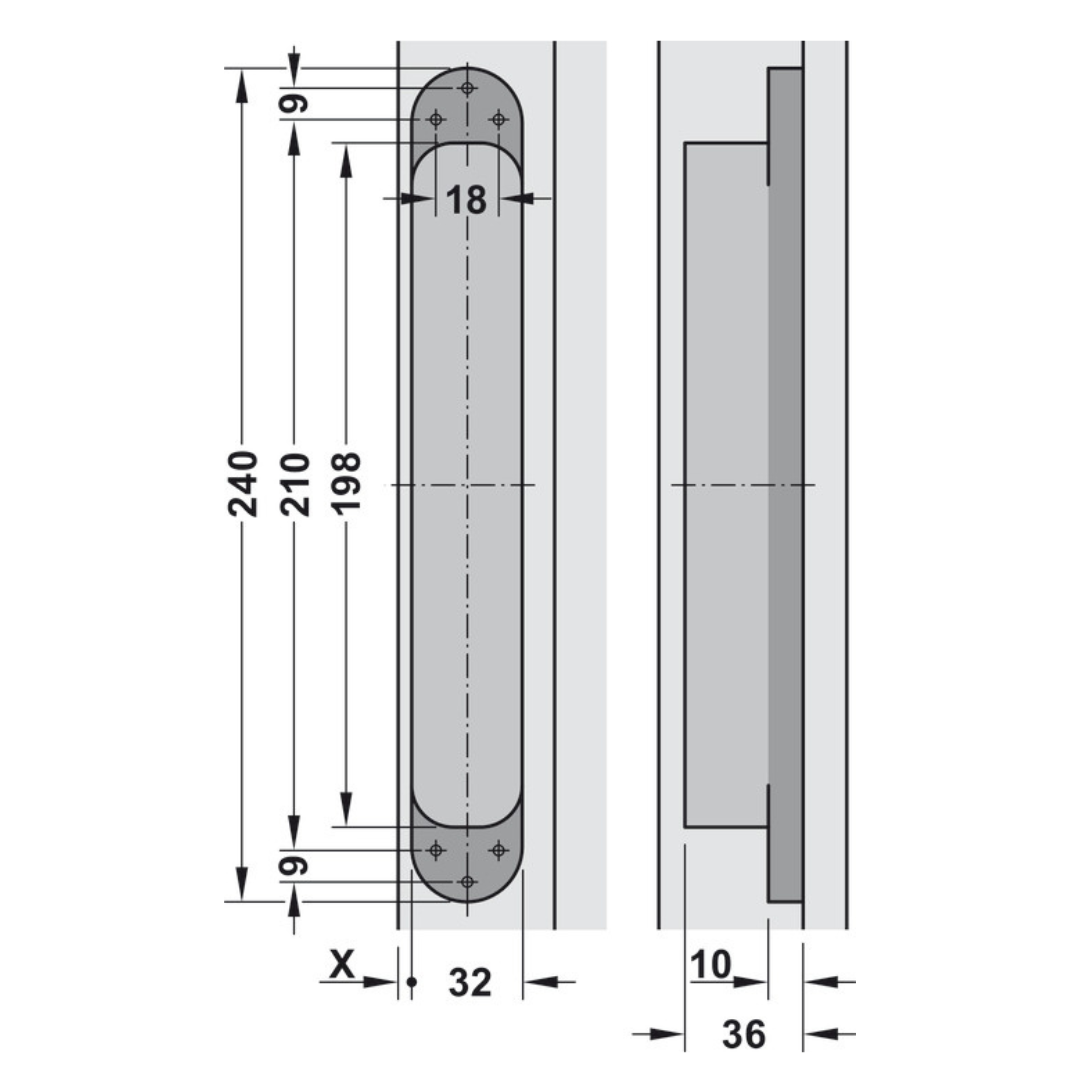

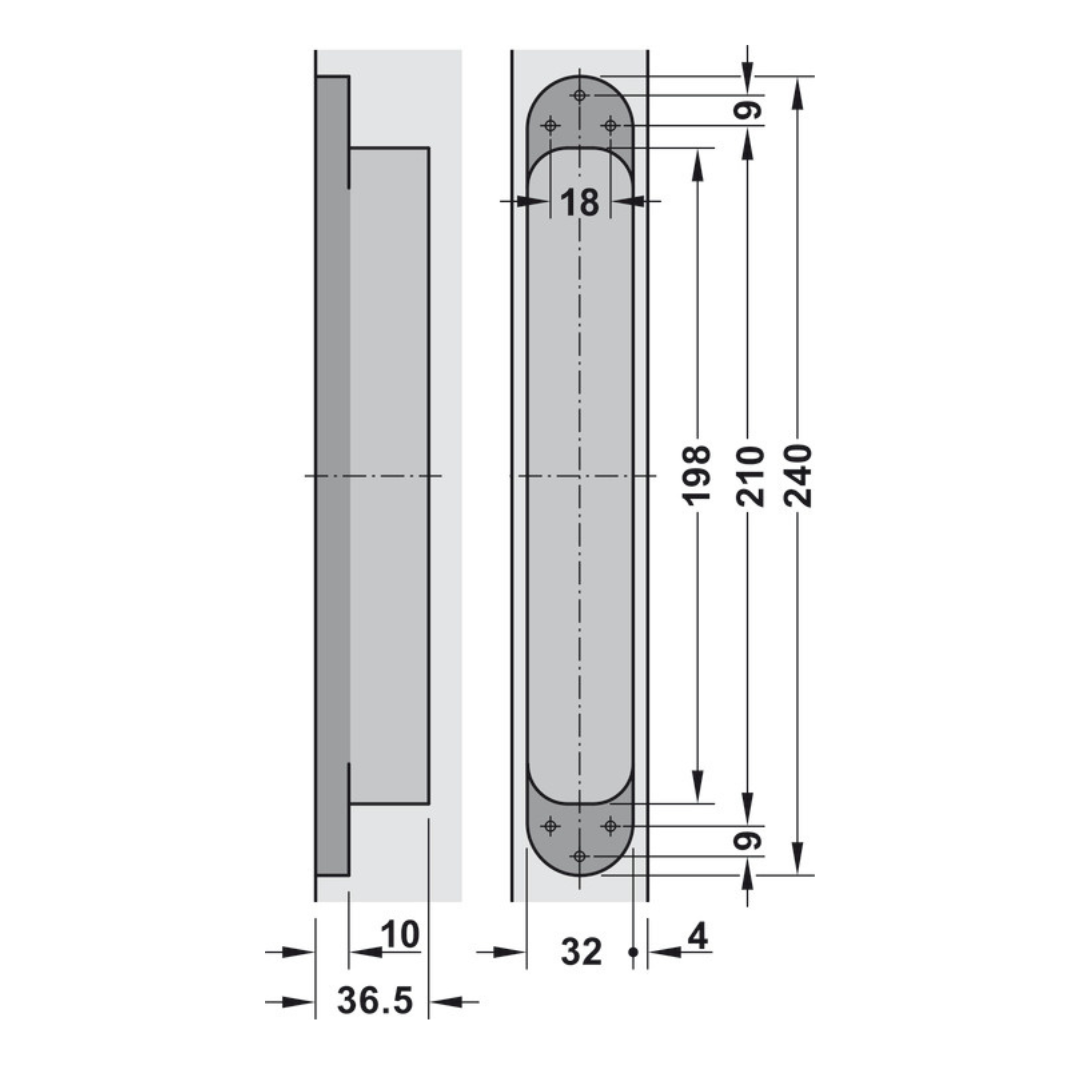

| Flange: | Shape: Rounded Width: 32mm Height: 240mm |
| Max. door weight for 2 hinges: | 200kg |
| Opening angle: | 180 ° |
| Door thickness: | ≥40 mm |
| Router bit ∅: | 24 mm |
| Thrust ring ∅: | 30 mm |
| Adjustment facility: | Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment ±1 mm |
| Standard & Grade: |
Certified in compliance with EN 1935:2002 |
