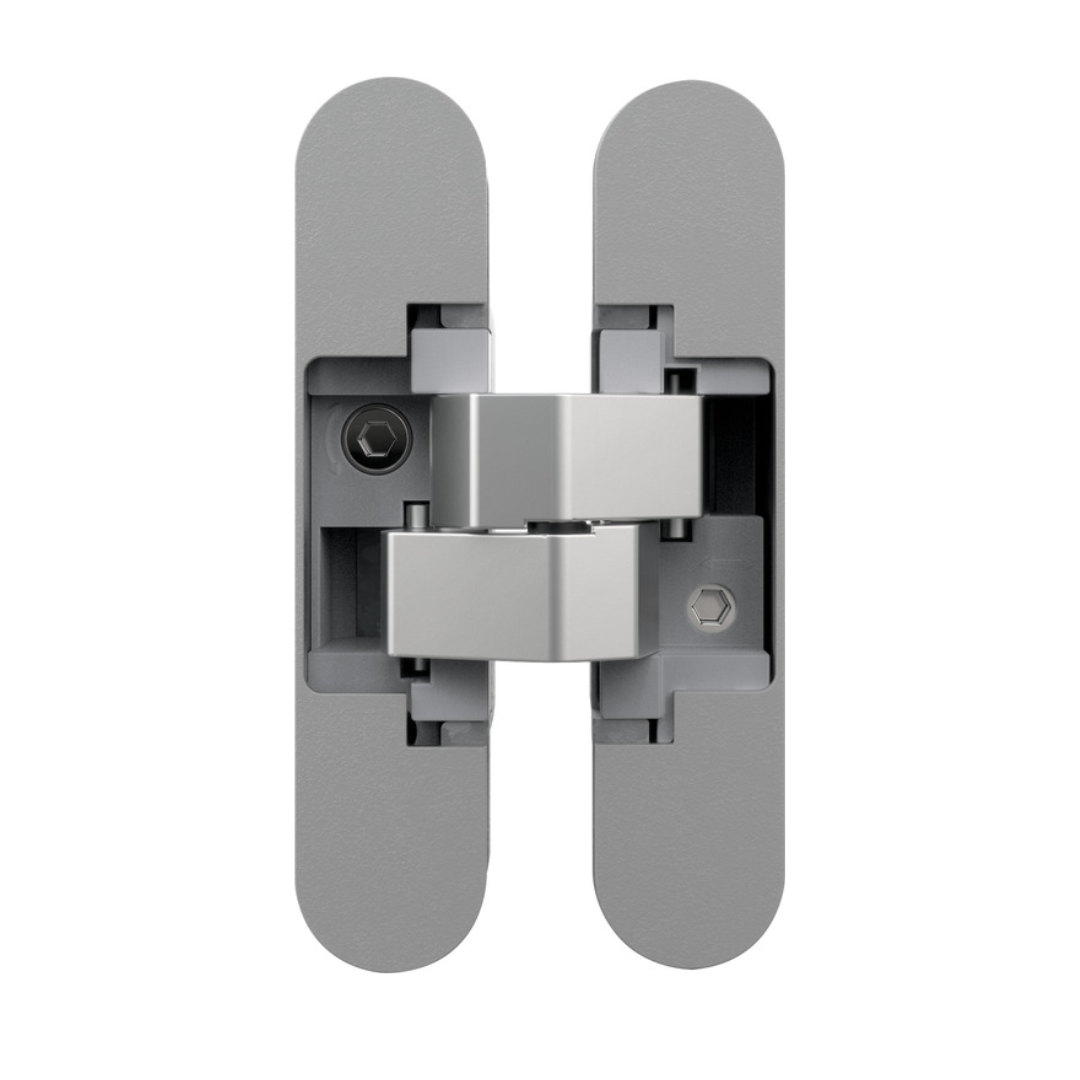

Door Hinge, AN 180 3D, Concealed, for Flush Interior Doors
$394.86
Cat. No: 922.17.035
| Area of Application: | For wooden frames, for flush interior doors flush doors |
| Model: | AN 180 3D |
| Material: | Zinc alloy, Steel |
| Finish: |
Polished Brass Plated |

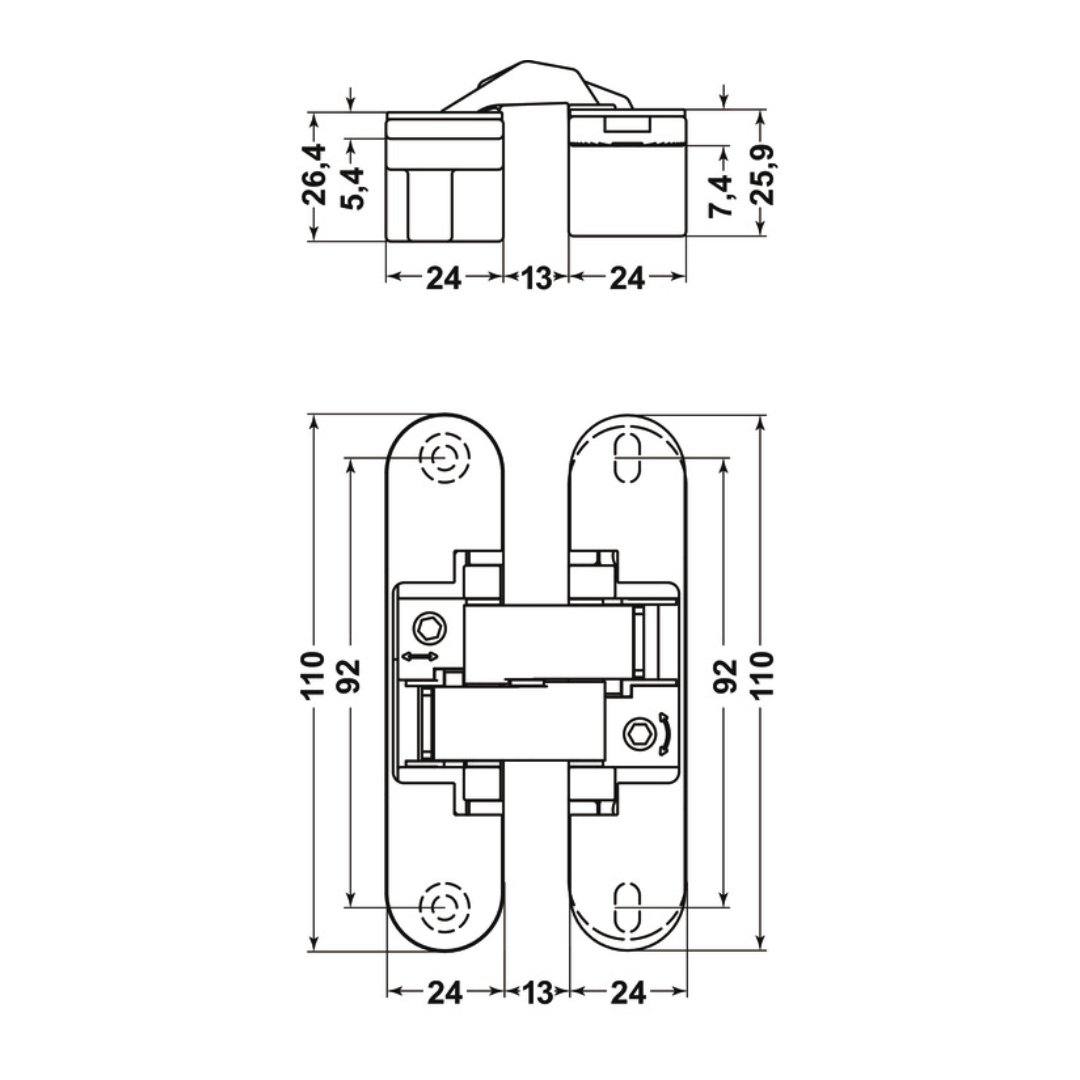

| Flange: | Shape: Rounded Width: 24mm Height: 110mm |
| Max. door weight for 2 hinges: | 80kg |
| Opening angle: | 180 ° |

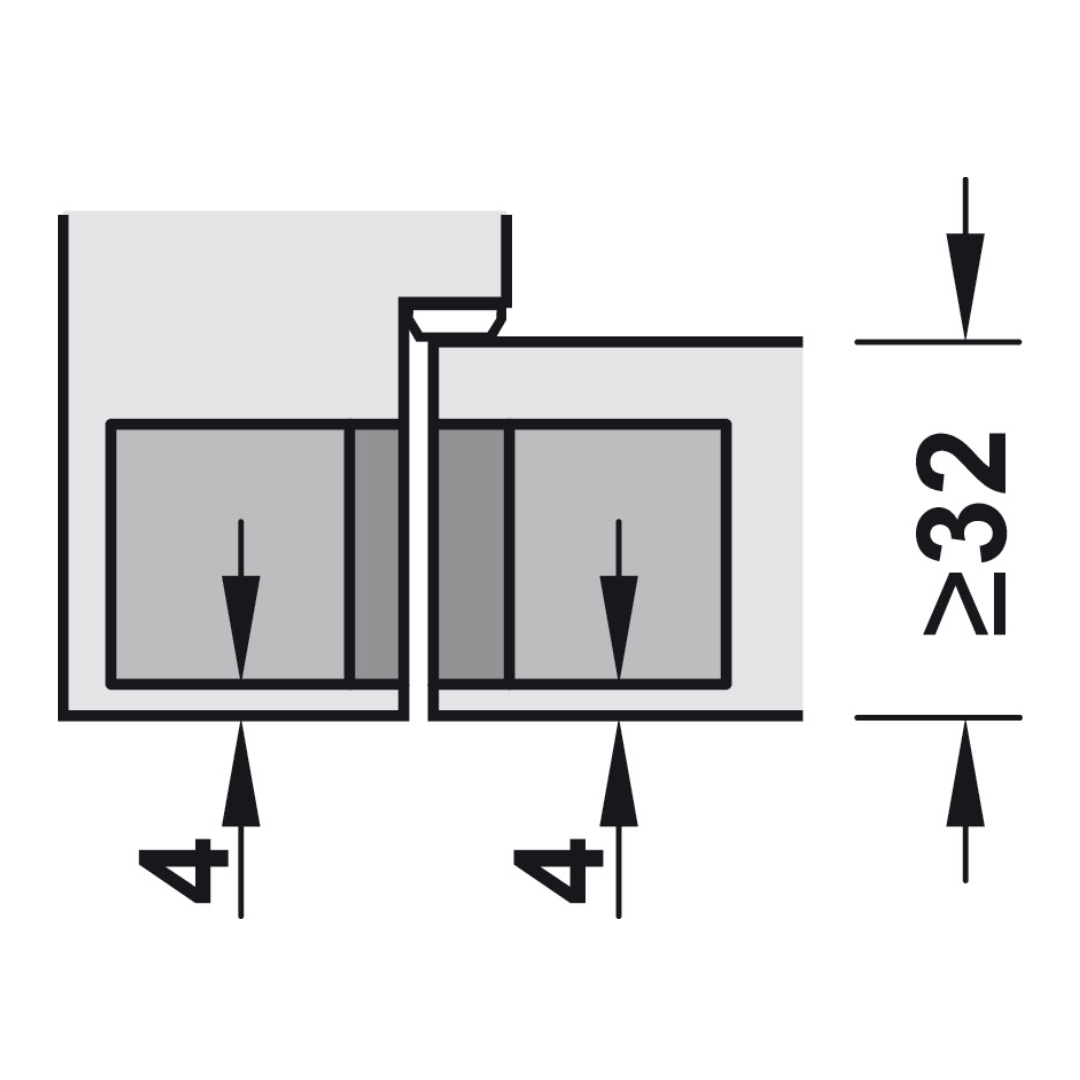

| Door thickness: | ≥32 mm |

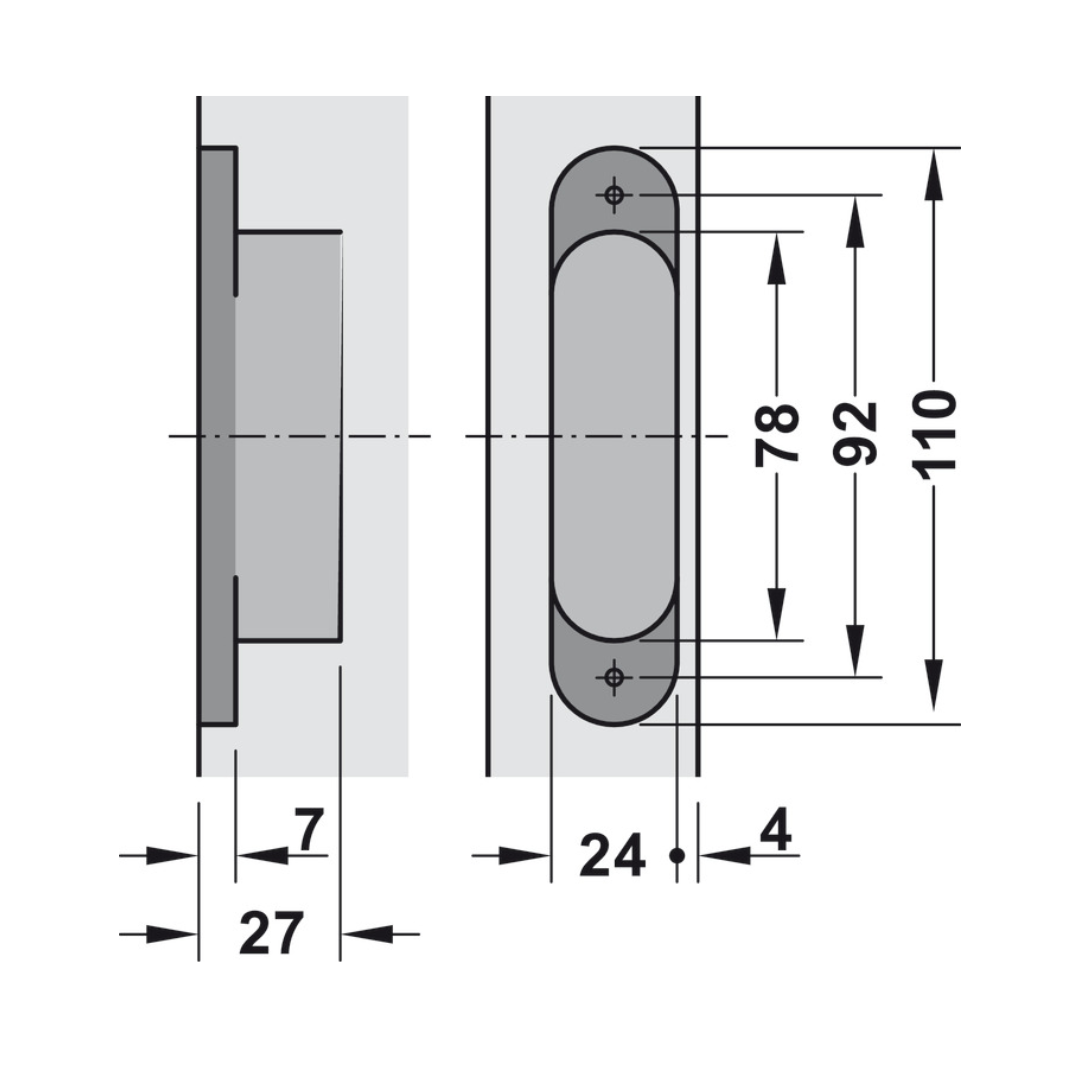

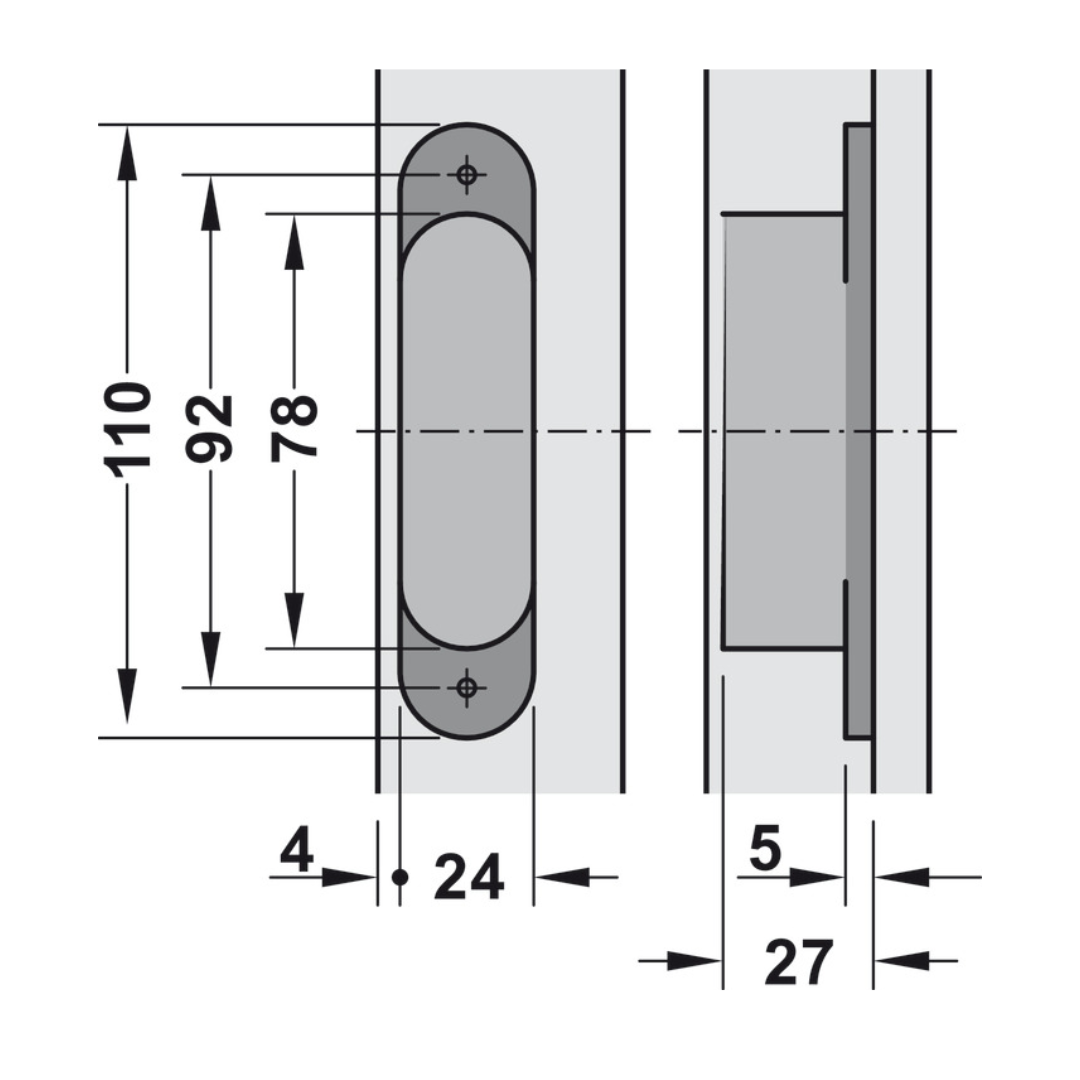

| Router bit ∅: | 24 mm |

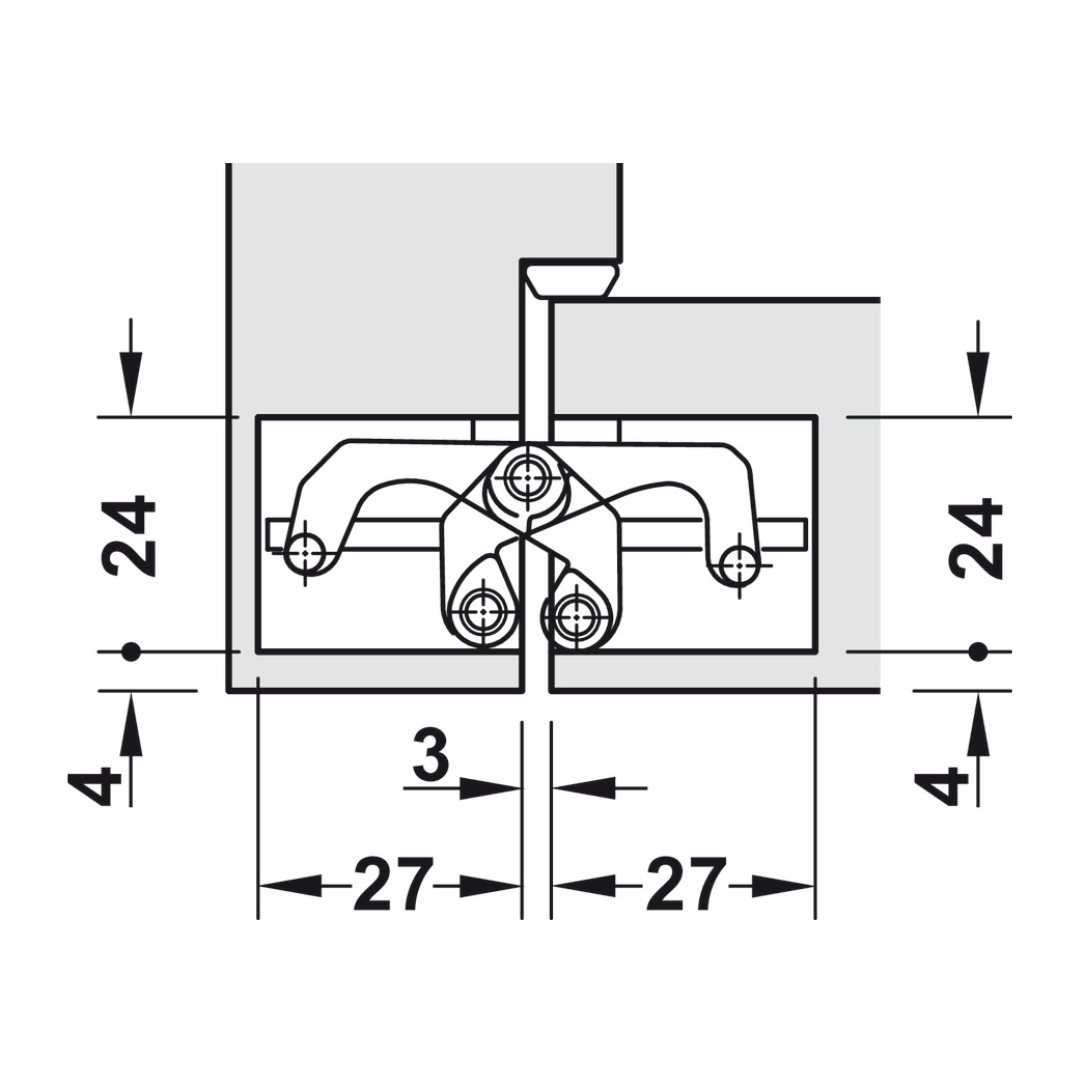

| Thrust ring ∅: | 27 mm |
| Adjustment facility: | Side adjustment ±1.5 mm, Height adjustment ±2.5 mm, Closing pressure adjustment ±1 mm |
| Standard & Grade: |
Certified in compliance with EN 1935:2002 |
